Spread Carbon Fabrics

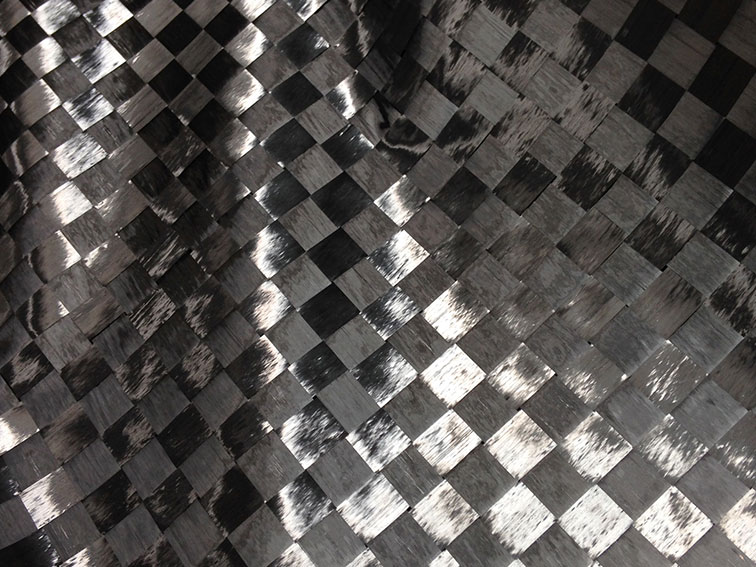

Spread Carbon Fabric

Over 20% Better

Compare with the conventional 3K carbon fabric, IntenLight could provide 20% more

CODE.	Style	Width (mm) +/-1%	Density (25m/m)		Thickness (mm) +/-3%	(g/㎡) +/-3% +Binder (g/㎡)	Length (M/Roll) +/-1%	Grade Color	Re-mark
CODE.	Style	Width (mm) +/-1%	Warp	Weft	Thickness (mm) +/-3%	(g/㎡) +/-3% +Binder (g/㎡)	Length (M/Roll) +/-1%	Grade Color	Re-mark
TI-IL0606	Plain Twill	1000	4	4	0.13	130	100	T300 T700	6K Carbon
TI-IL1208	Plain Twill	1000	3.3	3.3	0.2	200	100	T700	12K Carbon
TI-IL1215	Plain Twill	1000	1.6	1.6	0.15	102 (20)	100	T700	12K Carbon
TI-IL1220	Plain Twill	1000	1.25	1.25	0.15	80 (12)	50	T700	12K Carbon
TI-IL1225	Plain Twill	1270	1	1	0.08	64 (12)	50	T700	12K Carbon
TI-IL1520	Plain Twill	1000	12.5	12.5	0.15	100 (12)	50	TR50	15K Carbon
TI-IL2420	Plain	1000	12.5	12.5	0.16	160 (12)	50	T700 TC36S	24K Carbon
TI-IL2425	Plain	1270	1	1	0.11	128 (12)	50	T700 TC36S	24K Carbon
TI-ILM1220	Plain	1000	12.5	12.5	0.05	46 (12)	50	T800 (30T)	12K Carbon
TI-ILM1820	Plain	1000	12.5	12.5	0.08	76 (12)	50	M30 (30T)	18K Carbon
TI-ILM2420	Plain	1000	12.5	12.5	0.1	100 (12)	50	T800 (30T)	24K Carbon
TI-ILM2420R	Plain	1000	12.5	12.5	0.1	96 (12)	50	MR60 (30T)	24K Carbon
TI-ILHM2420	Plain	1000	12.5	12.5	0.1	80 (12)	50	UMS40 (40T)	24K Carbon
TI-IL1215-A	Plain Twill	1000	1.6	1.6	0.15	107 (20)	100	Silver T700	12K Carbon
TI-IL1220-A	Plain Twill	1000	1.25	1.25	0.15	85 (12)	50	Silver T700	12K Carbon
TI-IL1520-A	Plain Twill	1000	1.25	1.25	0.15	105 (12)	50	Silver TR50	15K Carbon
TI-IL1220-3A	Plain	1000	1.25	1.25	0.15	100 (12)	50	Blue T700	12K Carbon
TI-IL1220-5A	Plain	1000	1.25	1.25	0.15	100 (12)	50	Green T700	12K Carbon
TI-IL1215- P-BS	Plain	1000	1.6	1.6	0.24	107 (23)	100	B/Silver T700	12K Carbon
TI-IL1520- P-GASW	Plain	1000	1.25	1.25	0.15	220 (12)	50	B/W T700	15K Carbon White Fiberglass
TI-IL1520- P-5GA	Plain	1000	1.25	1.25	0.15	220 (12)	50	B/G T700	15K Carbon green Fiberglass
