Carbon Aramid Hybrid

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-12104 12K	Plain	1020	8	8	0.5	500	50	Aramid 50% (Yellow)
TI-12107 12K	Plain	1020	9	9	0.65	580	50	Aramid 50% (Yellow)
TI-12204 12K	Plain	1020	10	10	0.65	610	50	Aramid 50% (Yellow)
TI-12604 12K	Twill	1020	10	10	0.65	615	50	Aramid 50% (Yellow)
TI-3104	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Yellow)
TI-3104-3	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Blue)
TI-3104-3-1	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Pale Blue)
TI-3104-4	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Black)
TI-3104-5	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Green)
TI-3104-6	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Orange)
TI-3104-7	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Red)
TI-3104-8	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Purple)
TI-3104-9	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Brown)
TI-3109	Plain	1020	12.5	12.5	0.2	190	100	Aramid 50% (Coppery)
TI-3112 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Yellow)
TI-3113 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Blue)
TI-3113-1 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Pale Blue)
TI-3114 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Black)
TI-3115 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Green)
TI-3116 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Orange)
TI-3117 3K	Plain	1020	13	13	0.2	205	100	Aramid 25% (Red)
TI-3123-1 3K	Plain	1020	13	13	0.2	200	100	Aramid 50% (Yellow 25%+Pale Blue 25%)
TI-3126 3K	Plain	1020	13	13	0.2	200	100	Aramid 50% (Yellow 25%+Orange 25%)
TI-3401 3K	H type	1020	13	13	0.2	200	100	Aramid 50% (Yellow)
TI-3402	Z type	1020	13	13	0.2	240	100	Black + Yellow
TI-3601-3 3K	Twill	1020	13	13	0.2	200	100	Aramid 50% (Blue)
TI-3604 3K	Twill	1200	13	14	0.2	192	100	Aramid 50% (Black)
TI-3604-6 3K	Twill	1020	12.5	12.5	0.2	195	100	Aramid 50% (Orange)
TI-3604-7 3K	Twill	1020	12.5	12.5	0.2	195	100	Aramid 50% (Red)
TI-3614 3K	Twill	1020	15	15	0.23	230	100	Aramid 25%
TI-3622	Twill	1020	13	13	0.2	185	100	Aramid 75% (Yellow)
TI-3623	Twill	1020	13	13	0.2	185	100	Aramid 75% (Yellow 50%+Blue 25%)
TI-3623-1	Twill	1020	13	13	0.2	185	100	Aramid 75% (Yellow 50%+Pale Blue 25%)
TI-3625	Twill	1020	13	13	0.2	185	100	Aramid 75% (Yellow 50%+Green 25%)
TI-3626	Twill	1020	13	13	0.2	185	100	Aramid 75% (Yellow 50%+Orange 25%)
TI-3627	Twill	1020	13	13	0.2	185	100	Aramid 75% (Yellow 50%+Red 25%)
TI-3642	Twill	1020	13	13	0.2	192	100	Aramid 50% (Yellow)
TI-3643	Twill	1020	13	13	0.2	192	100	Aramid 50% (Yellow 25%+Blue 25%)
TI-3643-1	Twill	1020	13	13	0.2	192	100	Aramid 50% (Yellow 25%+Pale Blue 25%)
TI-3645	Twill	1020	13	13	0.2	192	100	Aramid 50% (Yellow 25%+Green 25%)
TI-3646	Twill	1020	13	13	0.2	192	100	Aramid 50% (Yellow 25%+Orange 25%)
TI-3647	Twill	1020	13	13	0.2	192	100	Aramid 50% (Yellow 25%+Red 25%)
TI-6104 6K	Plain	1020	10	10	0.31	310	100	Aramid 50% (Black)
TI-6107 6K	Plain	1020	10	10	0.31	310	100	Aramid 50% (Red)
TI-6602	Twill	1020	12	12	0.35	380	100	Aramid 50% (Yellow)
TI-6603	Twill	1020	12	12	0.35	380	100	Aramid 50% (Deep Blue)
TI-6604	Twill	1020	12	12	0.35	380	100	Aramid 50% (Black)

Aramid Fiberglass Hybrid

Application for motor sports, the fashion, aircraft construction, ship construction, sports equipment, automotive engineering, electrical products and other design tagged applications. Plain, Twill

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-1302	Plain	1020	13	13	0.24	240	100	Aramid 50% (Yellow)
TI-1303	Plain	1020	13	13	0.24	240	100	Aramid 50% (Blue)
TI-1303-1	Plain	1020	13	13	0.24	240	100	Aramid 50% (Pale Blue)
TI-1304	Plain	1020	13	13	0.24	240	100	Aramid 50% (Black)
TI-1305	Plain	1020	13	13	0.24	240	100	Aramid 50% (Green)
TI-1306	Plain	1020	13	13	0.24	240	100	Aramid 50% (Orange)
TI-1307	Plain	1020	13	13	0.24	240	100	Aramid 50% (Red)
TI-1316-2 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Yellow)
TI-1316-3 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Blue)
TI-1316-3-1 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Pale Blue)
TI-1316-4 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Black)
TI-1316-5 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Green)
TI-1316-6 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Orange)
TI-1316-7 GK	Plain	1020	13	16	0.27	270	100	Aramid 50% (Red)
TI-1350	Plain	1020	13	14	0.35	350	100	Twaron 3360 x Glass 300Tex
TI-1351	Plain	1020	16	14	0.4	400	100	Twaron 3360 x Glass 300Tex
TI-1352	Plain	1020	13	14	0.52	500	100	Aramid 50% (Yellow)
TI-2016-2 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Yellow)
TI-2016-3 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Blue)
TI-2016-3-1 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Pale Blue)
TI-2016-4 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Black)
TI-2016-5 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Green)
TI-2016-6 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Orange)
TI-2016-7 GK	Twill	1020	20	16	0.27	270	100	Aramid 50% (Red)

Carbon Fiberglass Hybrid

mpact strength, tensile strength. Application for motor sports, the fashion, aircraft construction, ship construction, sports equipment, automotive engineering, electrical products and other design tagged applications. Plain, Twill

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-12103 12K	Plain	1020	8	8	0.7	650	50	Glass 50%
TI-12106 12K	Plain	1020	9	9.5	0.7	750	50	Glass 50%
TI-12114 12K	Twill	1200	13	13	1.2	990	50	Glass 50%
TI-12603 12K	Twill	1020	10	10	0.9	760	50	Glass 50%
TI-12613 12K	Twill	1020	10	10	1.2	1200	50	Glass 50%
TI-24603 24K	Twill	1020	8	8	0.9	900	50	Glass 50%
TI-30103 30K	Plain	1020	6.5	5	1	1000	50	Glass 50%
TI-3103 3K	Plain	1020	12.5	12.5	0.25	250	100	Glass 50%
TI-3177 3K	Plain	1020	13	13	0.2	200	100	Glass 50%
TI-3203 3K	Plain	1020	15	15	0.32	300	100	Glass 50%
TI-34400	Twill 4×4	1020	17	13	0.33	340	100	Black x White(Glass)
TI-34477	Twill 4×4	1020	17	13	0.33	340	100	Black x Red (Glass)
TI-34488	Jacqard	1020	17	13	0.33	340	100	Black x Purple
TI-3603 3K	Twill	1020	13	13	0.3	260	100	Glass 50%
TI-3613 3K	Twill	1020	15	15	0.32	300	100	Glass 50%
TI-6103 6K	Plain	1020	10	10	0.35	425	100	Glass 50%
TI-6106 6K	Twill	1020	10	10	0.35	425	100	Glass 50%

Aramid Basalt Hybrid

UV stability of 6. High strength and tensile qualities. No after coating necessary. Superb cost performance. Applications. Sports and the motor industry. Fashion and industrial design. Military,medical and aerospace.

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-2101-2-BK	Plain	1020	13	15	0.25	250	100	Yellow
TI-2101-3-1-BK	Plain	1020	13	15	0.25	250	100	Pale Blue
TI-2101-3-BK	Plain	1020	13	15	0.25	250	100	Blue
TI-2101-4-BK	Plain	1020	13	15	0.25	250	100	Black
TI-2101-5-BK	Plain	1020	13	15	0.25	250	100	Green
TI-2101-6-BK	Plain	1020	13	15	0.25	250	100	Orange
TI-2101-7-BK	Plain	1020	13	15	0.25	250	100	Red
TI-2601-2-BK	Twill	1020	13	15	0.25	250	100	Yellow
TI-2601-3-1-BK	Twill	1020	13	15	0.25	250	100	Pale Blue
TI-2601-3-BK	Twill	1020	13	15	0.25	250	100	Blue
TI-2601-4-BK	Twill	1020	13	15	0.25	250	100	Black
TI-2601-5-BK	Twill	1020	13	15	0.25	250	100	Green
TI-2601-6-BK	Twill	1020	13	15	0.25	250	100	Orange
TI-2601-7-BK	Twill	1020	13	15	0.25	250	100	Red

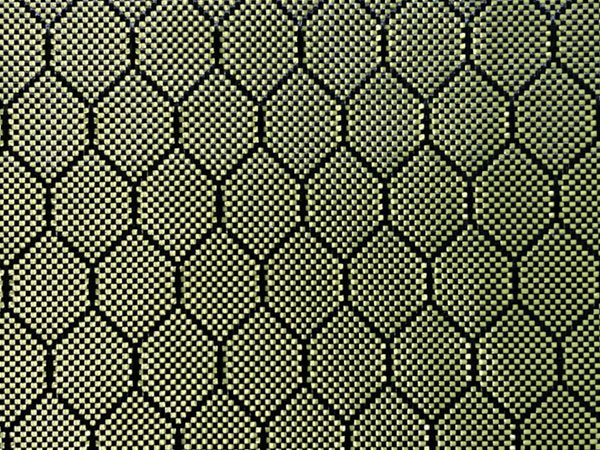

Hybrid Jacquard Style Woven

Jacquard Style, Materils based on Carbon, Aramid and colored Fiberglass fiber..

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-3070	Jacqard	1020	13	13	0.21	200	100	Black x White(Glass)
TI-3072 K	Jacqard	1020	13	13	0.21	200	100	Black x Yellow
TI-3073 K	Jacqard	1020	13	13	0.21	200	100	Black x Blue
TI-3073-1 K	Jacqard	1020	13	13	0.21	200	100	Black x Blue
TI-3076 K	Jacqard	1020	13	13	0.21	200	100	Black x Orange
TI-3077 K	Jacqard	1020	13	13	0.21	200	100	Black x Red
TI-3080	Jacqard	1020	17	17	0.26	260	100	Black x White(Glass)
TI-3082 K	Jacqard	1020	17	17	0.21	204	100	Black x Yellow
TI-3083 K	Jacqard	1020	17	17	0.21	204	100	Black x Deep Blue
TI-3083-1 K	Jacqard	1020	17	17	0.21	204	100	Black x Blue
TI-3085 K	Jacqard	1020	17	17	0.21	204	100	Black x Green
TI-3173 G	Jacqard	1020	17	17	0.33	340	100	Black x Deep Blue (Glass)
TI-3177-G	Jacqard	1020	17	17	0.33	340	100	Black x Red (Glass)
