FRP materials

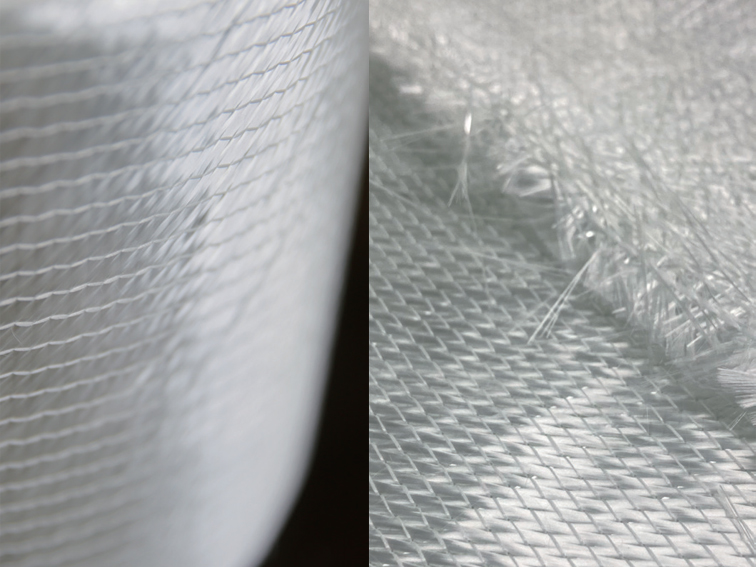

Multi-axial fabrics and with Mat [Multi-axial fabric, Bi-axial fabric + Chopped strand mat]
It is a stitch-bonded composite reinforcement combining continuous roving oriented in the 0°, 90° and +45°,-45°directions into a single fabric. It can be with mat or without mat It is ideal for applications such as wind blades, marine panel, snowboards, truck and trailer panels.
| Product No. | Overall Density (g/㎡) |
0°Roving Density (g/㎡) |
90°Roving Density (g/㎡) |
Chop Density (g/㎡) |
Polyester Yarn (g/㎡) |
|---|---|---|---|---|---|
| EKLT400 | 409.5 | 202 | 198 | / | 9.5 |
| EKLT600 | 609.5 | 330 | 270 | / | 9.5 |
| EKLT800 | 809.5 | 412.5 | 387.5 | / | 9.5 |
| EKLT1200 | 1209.5 | 605 | 595 | / | 9.5 |
| EKLT400/M200 | 609.5 | 202 | 198 | 200 | 9.5 |
| EKLT600/M300 | 909.5 | 330 | 270 | 300 | 9.5 |
| EKLT600/450 | 1059.5 | 330 | 270 | 450 | 9.5 |
| Product No. | Overall Density (g/㎡) |
+45°Roving Density (g/㎡) |
-45°Roving Density (g/㎡) |
Chop Density (g/㎡) |
Polyester Yarn Density(g/㎡) |
|---|---|---|---|---|---|
| EKBX160 | 172 | 80 | 80 | / | 6 |
| EKBX240 | 233 | 106 | 106 | / | 6 |
| EKBX300 | 306.7 | 150.33 | 150.33 | / | 6 |
| EKBX400 | 407 | 200.5 | 200.5 | / | 6 |
| EKBX450 | 457 | 225.5 | 225.5 | / | 6 |
| EKBX600 | 607.2 | 300.6 | 300.6 | / | 6 |
| EKBX800 | 807.6 | 400.8 | 400.8 | / | 6 |
| EKBX1200 | 1208.6 | 601.3 | 601.3 | / | 6 |
| EKBX600/M200 | 606 | 202 | 198 | 200 | 6 |
| EKBX600/M275 | 881 | 330 | 270 | 275 | 6 |
| EKBX600/M450 | 1056 | 330 | 270 | 450 | 6 |
