E-glass Fiber Yarn

ISO2015 :14001 CERTIFIED COMPANY.

E-glass Fiber Yarn

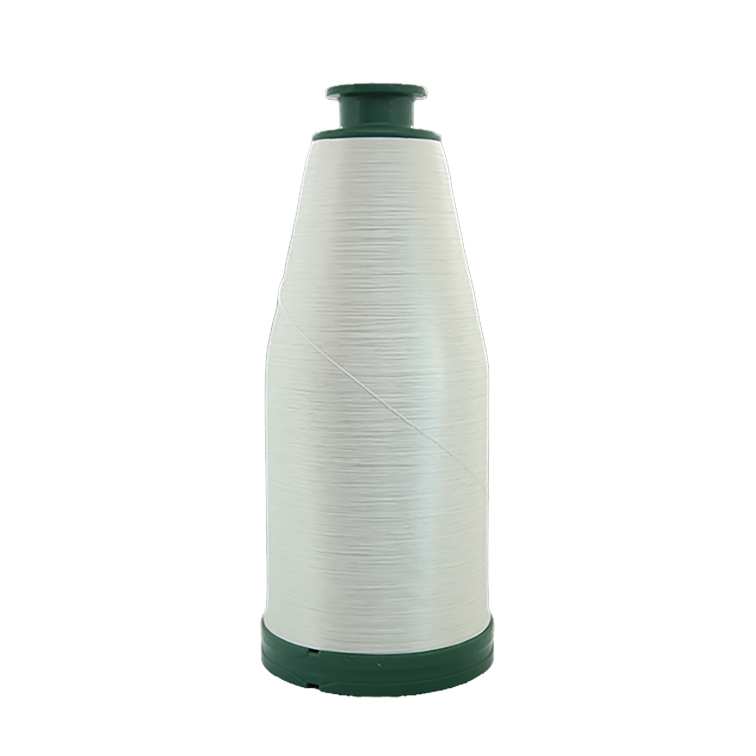

E-GLASS FIBER YARN

Entra Korea maintains a great partnership with CPIC’s glass fiber yarn division. CPIC classifies its glass fiber yarn offerings into several types:

  1. Single-Twist Yarn: Produced by twisting hundreds of glass fiber filaments following a singular twist process.
  2. Plied Yarn: Formed by combining two or more strands of single-twist yarns through an additional twisting stage.

Single Yarn

Type
(t.p.m) 		Inch-unit
(t.p.i) 		Sizing Type Liner
Density
(tex) 		Bobbin
Type 		Length
(m/bobbin) 		Net Wetght
(kg/bobbin)
EC 5 5 Z40 EC D900 1/0 1.0Z Y5 5.6 BD2 204000 1.14
EC 511 Z40 EC D450 1/0 1.0Z Y5 11.2 BD1 241000 2.70
EC 6 34 Z28 EC DE150 1/0 0.7Z Y3 34 B4 106400 3.60
EC 6 68 Z28 EC DE75 1/0 0.7Z Y3 68 B4 52900 3.60
EC 6 136 Z28 EC DE37 1/0 0.7Z Y3 136 B4 25900 3.60
EC 7 22 Z40 EC E225 1/0 1.0Z Y3 22.5 B4 142400 3.20
EC 8 55 Z64 EC F90 1/0 1.6Z P2 55.3 B4 72300 4.00
EC 9 34 Z28 (Z20)
EC 9 34 Z52 		EC G150 1/0 0.7Z(0.5Z)
EC G150 1/0 1.3Z 		Y1,T1, T4, T5, T6,
T7, P2 P2 		34.0
33.1 		B4
B4 		106400
121000 		3.60
4.00
EC 9 68 Z28 (Z20)
EC 9 68 Z28 (Z20) 		EC G75 1/0 0.7Z (0.5Z)
EC G75 1/0 0.7Z (0.5Z) 		Y1, T1, T4,
T5, T6, T7, P2 		68.7
68.7 		B8/B4
B8/B4 		109100(B8)
52400(B4) 		7.50(B8)
3.60(B4)
EC 9 74 Z28 EC G67 1/0 0.7Z Y1 74 B8 109500 8.10
EC 9 136 Z28 (Z20) EC G37 1/0 0.7Z (0.5Z) Y1, T1, T4, T5, T6, T7 136 B8/B4 62400(B8)
25900(B4) 		8.50(B8)
3.60(B4)
EC 11 204 Z28 EC H25 1/0 0.7Z Y1, T1 204 B8/B4 36800(B8)
17700(B4) 		7.50(B8)
3.60(B4)
EC 11 408 Z28 EC H12 1/0 0.7Z Y1, T1 408 B4 8800 3.60
EC 13 272 Z28 EC K18 1/0 0.7Z Y1, T1 272 B4 13200 3.60

Plied Yarn

Type
(t.p.m) 		Inch-unit
(t.p.i) 		Sizing Type Liner
Density
(tex) 		Bobbin
Type 		Length
(m/bobbin) 		Net Wetght
(kg/bobbin)
EC 5 5*2 S100 EC D900 1/2 2.5S Y5 10 B4 80000 2.60
EC 5 5*3 S100 EC D900 1/3 2.5S Y5 15 B4 53300 2,60
EC 5 5*4 S100 EC D900 1/4 2.5S Y5 20 B4 40000 2,60
EC 5 11*16 Z112 EC D450 1/16 2.8Z Y5 176 B4 21500 3.60
EC 6 34*2 S100 EC DE150 1/2 2.5S Y3 68 B4 53000 3.60
EC 6 34*3 S100 EC DE150 1/3 2.5S Y3 102 B4 35300 3.60
EC 6 34*4 S100 EC DE150 1/4 2.5S Y3 136 B4 26500 3 60
EC 7 22*2 S100 EC E225 1/2 2.5S Y1, T1, T4, T5, T6, T7 45 B4 80000 3.60
EC 7 22*3 S100 EC E225 1/3 2.5S Y1, T1, T4, T5, T6, T7 67.5 B4 53300 3.60
EC 7 22*42 S100 EC E225 1/4 2.5S Y1, T1, T4, T5, T6, T7 90 B4 40000 3.60
EC 9 34*2 S100 EC G150 1/2 2.5S Y1, T1, T4, T5, T6, T7 68 B4 53000 3,60
EC 9 34*3 S100 EC G150 1/3 2.5S Y1, T1, T4, T5, T6, T7 102 B4 35300 3,60
EC 9 34*4 S100 EC G150 1/4 2.5S Y1, T1, T4, T5, T6, T7 136 B4 26500 3.60
EC 9 68*2 S112 EC G75 1/2 2.8S Y1, T1, T4, T5, T6, T7 137 B4 26200 3,60
EC 9 68*3 S112 EC G75 1/3 2.8S Y1, T1, T4, T5, T6, T7 206 B4 17500 3,60
EC 9 68*4 S112 EC G75 1/4 2.8S Y1, T1, T4, T5, T6, T7 275 B4 13100 3.60
EC 9 136*2 S150 EC G37 1/2 3.75S Y1, T1, T4, T5, T6, T7 272 B4 13300 3.60
EC 9 136*3 S150 EC G37 1/3 3.75S Y1, T1, T4, T5, T6, T7 408 B4 8900 3.60
EC 9 136*4 S150 EC G37 1/4 3.75S Y1, T1, T4, T5, T6, T7 544 B4 6620 3.60
