Carbon Fiber Fabric

The smallest and tightest weave available,only the most specialized composite weavers have the skill and technique to produce this intricate material. Most commonly used in the sports,apparel and industries such as precision watch manufacturing,where carbon is utilized on a small scale,to allow for fine details and intricate surface areas.Available in Plain or Twill weave.

1K CARBON FIBER FABRICS

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-1101	Plain	1000	22.5	22.5	0.16	125	110	/
TI-1601	Twill	1000	24	25	0.15	130	110	/

3K CARBON FIBER FABRICS

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-3101	Plain	1020	12.5	12.5	0.2	200	100	/
TI-3101-A	Plain	1020	12.5	12.5	0.2	200	100	One Side Silver Plated
TI-3101-AA	Plain	1020	12.5	12.5	0.2	200	100	Two Sides Silver Plated
TI-3101-S	Plain	1020	13	13	0.2	205	100	Immoveable
TI-3107	Plain	1020	13	13	0.2	210	100	/
TI-3107-A	Plain	1020	13	13	0.2	210	100	One Side Silver Plated
TI-3108	Plain	1500	13	13	0.2	210	100	/
TI-3150	Plain	1270	12.5	12.5	0.2	208	100	/
TI-3151	Plain	1270	13	13	0.2	210	100	/
TI-3151-S	Plain	1270	13	13	0.2	208	100	Immoveable
TI-3165-S	Plain	1650	13	13	0.2	212	50	For Car Industry / Immovable treatment
TI-3201	Plain	1020	15	15	0.24	240	100	/
TI-3201-A	Plain	1020	15	15	0.24	240	100	One Side Silver Plated
TI-3205	Plain	1020	15	15	0.24	242	100	/
TI-3301	Plain	1020	10	10	0.16	160	100	/
TI-34401	Twill 4×4	1020	17	13	0.2	240	100
TI-3601	Twill	1020	13	13	0.2	208	100	/
TI-3601-S	Twill	1020	13	13	0.2	205	100	Immoveable
TI-3611	Twill	1020	15	15	0.24	240	100	/
TI-3611-A	Twill	1020	15	15	0.24	240	100	One Side Silver Plated
TI-3617-A	Twill	1020	13	13	0.21	210	100	One Side Silver Plated
TI-3665-S	Twill	1650	13	13	0.2	212	50	For Car Industry / Immovable treatment
TI-3711	Twill	1270	13	13	0.2	210	100	/
TI-3711-S	Twill	1270	13	13	0.2	208	100	Immoveable
TI-3811	Twill	1500	13	13	0.2	210	100	/
TI-3824	8HS	1020	24	24	0.5	384	100	/
TI-3951	5HS	1020	18	18	0.35	282	100	/
TI-3952	5HS	1020	20	20	0.45	320	100	/

6K CARBON FIBER FABRICS

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-6101	Plain	1020	10	10	0.32	320	100	/
TI-6108	Twill	1020	10	10	0.32	320	100	/
TI-6201	Plain	1020	12	12	0.4	410	50	/
TI-6601	Twill	1020	9.5	9.5	0.3	305	100
TI-6941	4HS	1020	12	12	0.45	370	100	/
TI-6948	8HS	1020	15	15	0.45	475	100

12K CARBON FIBER FABRICS

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-12101	Plain	1020	8	8	0.55	520	50	/
TI-12105	Plain	1020	9	9.5	0.6	600	50	/
TI-12201 12K	Plain	1020	10	10	0.65	650	50	/
TI-12601 12K	Twill	1020	10	10	0.7	610	50	/
TI-12633	Twill	1020	13	13	0.9	840	50	/
TI-12680	8HS	1020	10	10	0.65	680	50	/

24K CARBON FIBER FABRICS

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-24101	Plain	1020	6	6	0.7	680	50	/
TI-24201	Plain	1020	8	8	0.9	900	50	/
TI-24601	Twill	1020	6	6	0.7	680	50	/
TI-24602	Twill	1020	9	9	1.1	1120	50	/

GLITTER CARBON FIBER FABRICS

The most commonly used composite fabric, but now you have another choice with colored Glitter fiber. TEI has the technical know-how to produce special Carbon series with colored glitter fiber; Carbon fiber will not be just black.

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TEI-301	UD	1020	0	0	0.2	305	100	Silver
TEI-302	UD	1020	0	0	0.2	305	100	Gold
TEI-303	UD	1020	0	0	0.2	305	100	Blue
TEI-305	UD	1020	0	0	0.2	305	100	Green
TEI-307	UD	1020	0	0	0.2	305	100	Red
TI-301	Plain	1020	13	13	0.2	210	100	Silver
TI-302	Plain	1020	13	13	0.2	210	100	Golden
TI-302-2	plain	1020	13	13	0.21	220	100	1mm, Golden, heat protection
TI-303	Plain	1020	13	13	0.2	210	100	Blue
TI-303-3	Plain	1020	13	13	0.21	220	100	1mm, Blue, heat protection
TI-305	Plain	1020	13	13	0.2	210	100	Green
TI-305-5	Plain	1020	13	13	0.21	220	100	1mm, Green, heat protection
TI-307	Plain	1020	13	13	0.2	210	100	Red
TI-307-7	Plain	1020	13	13	0.21	220	100	1mm, Red, heat protection
TI-308-8	Plain	1020	13	13	0.21	220	100	1mm, Purple , heat protection
TI-311	Plain	1020	13.5	13.5	0.2	210	100	Think Sliver yarn
TI-312	Plain	1020	13.5	13.5	0.2	210	100	Think Golden yarn
TI-313	Plain	1020	13	13	0.2	210	100	50% Blue Aramid, Silver
TI-321	Plain	1020	13	13	0.25	250	100	50% Glass, Silver
TI-322	Plain	1020	13	13	0.25	250	100	50% Glass, Golden
TI-323	Plain	1020	13	13	0.25	250	100	50% Glass, Blue
TI-325	Plain	1020	13	13	0.25	250	100	50% Glass, Green
TI-327	Plain	1020	13	13	0.25	250	100	50% Glass, Red
TI-341	Plain	1020, 1270	13	13	0.2	200	100	Uni-Silver
TI-3411	Plain	1020, 1270	13	13	0.2	200	100	Bi-Silver
TI-3413	Plain	1020, 1270	13	13	0.2	200	100	Bi-Silver x Blue
TI-3415	Plain	1020, 1270	13	13	0.2	200	100	Bi-Silver x Green
TI-3417	Plain	1020, 1270	13	13	0.2	200	100	Bi-Silver x Red
TI-3418	Plain	1020, 1270	13	13	0.2	200	100	Bi-Silver x Purple
TI-342	Plain	1020, 1270	13	13	0.2	200	100	Uni-Gold
TI-3423	Plain	1020, 1270	13	13	0.2	200	100	Bi-Gold x Blue
TI-3425	Plain	1020	13	13	0.2	200	100	Bi-Gold x Green
TI-3428	Plain	1020	13	13	0.2	200	100	Bi-Gold x Purple
TI-3478	Plain	1020	13	13	0.2	200	100	Bi-Red x Purple

GLITTER CARBON JACQUARD FABRICS

Making a new style for your selection. Colored glitter makes the Carbon fiber more colorful, but we also present you several different jacquard styles.

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-3871	Jacquard	1020	17	17	0.4	205	100	Silver
TI-3872	Jacqard	1020	17	17	0.4	205	100	Gold
TI-3873	Jacqard	1020	17	17	0.4	205	100	Blue
TI-3873-1	Jacqard	1020	17	17	0.4	205	100	Pale Blue
TI-3874	Jacqard	1020	17	17	0.4	205	100	Black
TI-3875	Jacqard	1020	17	17	0.4	205	100	Green
TI-3877	Jacqard	1020	17	17	0.4	205	100	Red
TI-3878	Jacqard	1020	17	17	0.4	205	100	Purple
TI-3879	Jacqard	1020	17	17	0.4	205	100	Bronze

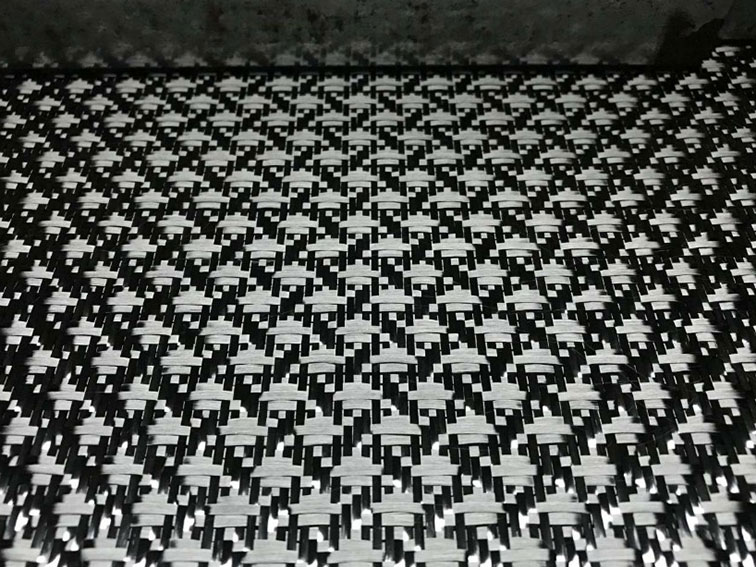

CARBON JACQUARD STYLE WOVEN

With the wonderful ideas, TEI presents you new style Carbon woven, you could select the new style to enrich your products.

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-3171	Jacquard	1020	17	17	0.25	272	100	100% 3K Carbon
TI-38121	Jacquard	1020	17	17	0.22	272	100	Hexangular 3K
TI-38151	Jacquard	1020	17	17	0.22	272	100	Rhombus 3K
TI-38161	Jacquard	1020	17	17	0.22	272	100	Arrow 3K

METALLIC CARBON JACQUARD FABRICS

The metallic materials with Carbon materilas.

Code No.	Weaving Methods	Width	Constrution (25m/m)		Thickness	Weight	Roll length	Weave
Code No.	Weaving Methods	m/m	Warp	Fill	m/m	g/m ²	M	Weave
TI-34403	Twill 4×4	1020	17	13	0.2	270	100	3K x Blue
TI-34403-1	Twill 4×4	1020	17	13	0.2	270	100	3K x Pale Blue
TI-34405	Twill 4×4	1020	17	13	0.2	270	100	3K x Green
TI-34407	Twill 4×4	1020	17	13	0.2	270	100	3K x Red
TI-34408	Twill 4×4	1020	17	13	0.2	270	100	3K x Purple
TI-34409	Twill 4×4	1020	17	13	0.2	270	100	3K x Bronze
TI-34411	Twill 4×4	1020	17	13	0.2	270	100	3K x Silver
TI-3871-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Silver Cooper
TI-3871-Ni	Jacquard	1020	17	17	0.4	205	100	Silver Titanium
TI-3872-1-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Gold Cooper
TI-3872-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Natural Copper
TI-3873-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Blue Cooper
TI-3874-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Black Cooper
TI-3875-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Green Cooper
TI-3877-1-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Pink Cooper
TI-3877-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Red Cooper
TI-3878-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Purple Cooper
TI-3879-CU	Jacquard	1020	17	17	0.5	442	100	Carbon x Brown Cooper
