Glass Fiber Fabrics

Glass Fiber Fabrics

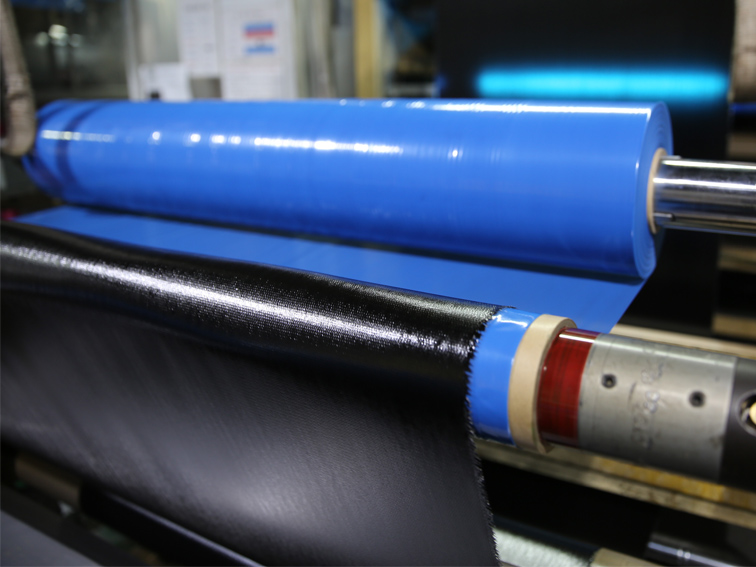

Entra Korea offers a diverse range of glass fiber fabrics with various weights and patterns, backed by 28 years of expertise. Depending on the desired pattern, we select from a variety of weaving techniques. From customized yarn selection optimized for performance to post-weaving treatments, we guide our customers through the entire process. Our fabrics are engineered for optimal strength and flexibility, enhancing thermal durability while improving electrical insulation properties.
We achieve flame resistance and fireproofing by providing treatments such as sizing, caramelizing, heat treatment, and silane coupling from the loomstate stage.

LOOMSTATE

Style No. Weave Areal weight Warp(/inch) Fill (/inch) Thickness (mm) Popular Application
25P PLAIN 25 56 56 0.03 With carbon UD
36P PLAIN 36 50 30 0.04 Industrial
1080P PLAIN 48 60 47 0.05 CCL
50L LENO PLAIN 50 9 9 0.05 Reinforcement
1083P PLAIN 52 64 52 0.07 CCL
54L LENO PLAIN 54 10 10 0.09 Reinforcement
54P PLAIN 54 20 10 0.09 Reinforcement
67P PLAIN 67 20 15 0.09 Industrial
76P PLAIN 76 44 40 0.08 Electric insulation
76L LENO PLAIN 76 7 5 0.28 Reinforcement
76LH LENO PLAIN 76 7 7 0.28 Reinforcement
81P PLAIN 81 30 30 0.09 FRP
84P PLAIN 84 16 15 0.11 Lamination
94PH PLAIN 94 30 20 0.12 Lamination
97P PLAIN 97 18 18 0.12 Lamination
2116P PLAIN 105 60 57 0.09 CCL
2116PH PLAIN 106 60.0 58.0 0.095 CCL
120S 4H SATIN 106 60 58 0.11 Aero space
108P PLAIN 108 20 20 0.12 FRP
108S 4H SATIN 108 64 25 0.10 Sporting goods
117P PLAIN 117 45 42 0.10 Insulation
129P PLAIN 129 124 54 0.05 Electric insulation
133S 4H SATIN 133 74 37 0.12 Sporting goods
135L LENO PLAIN 135 6.2 6.2 0.26 Dryvit
135P PLAIN 135 25 25 0.13 Industrial
138P PLAIN 138 126 60 0.15 Electric insulation
C140P PLAIN 142 30.4 22.8 0.14 Covering
153P PLAIN 145 127 64.5 0.14 Mobility
147P PLAIN 147 32 23 0.14 Electric insulation
148P PLAIN 148 30 25 0.14 Covering
150P PLAIN 150 28 28 0.14 Covering
151P PLAIN 151 60 52 0.12 Electric insulation
160P PLAIN 160 30 30 0.165 Covering
164P PLAIN 164 15 15 0.17 FRP
213S 4H SATIN 165 52 28 0.13 Sporting goods
173P PLAIN 173 34 30 0.17 Electric insulation
215S 4H SATIN 183 58 30 0.15 Sporting goods
183P PLAIN 183 36 32 0.18 Electric insulation
197P PLAIN 197 18 18 0.18 FRP
218S 4H SATIN 207 64 26 0.18 Sporting goods
7628P PLAIN 208 44 33 0.18 CCL
208P PLAIN 208 19 19 0.22 FRP
219P PLAIN 219 10 17 0.22 Industrial
230M MOCK LENO 230 33 39 0.22 Filtration
240P PLAIN 240 26 18 0.22 Insulation
7532P PLAIN 243 16 14 0.25 Insulation
251P PLAIN 251 23 23 0.23 Insulation
252P PLAIN 252 57 18 0.28 Electric insulation
254L LENO PLAIN 254 5 4.8 0.35 Dryvit
268P PLAIN 268 24 25 0.23 Insulation
275P PLAIN 275 17 17 0.26 Industrial
C280P PLAIN 280 30.4 22.0 0.28 Covering
294S 8H SATIN 294 56 53 0.23 Industrial
295P PLAIN 295 33 21 0.285 Covering
299S 8H SATIN 299 57 54 0.25 Aero space
7781S 8H SATIN 300 56 55 0.22 Aero space
300P PLAIN 300 34 22 0.30 Insulation
7581S 8H SATIN 305 57 55 0.20 Aero space
323P PLAIN 321 32 28 0.31 Insulation
7500P PLAIN 328 16 14 0.39 Insulation
370T 3:1 TWILL 370 34 34 0.32 Industrial
370T2 2:2 TWILL 370 34 34 0.32 Industrial
378P PLAIN 378 7 7 0.41 FRP
383P PLAIN 383 17.5 18 0.35 Industrial
389M MOCK LENO 389 33 39 0.46 Filtration
C390T TWILL 390 50.8 25.4 0.35 Insulation
430S 4H SATIN 430 46 33 0.31 Insulaiton
437S 4H SATIN 437 50 30 0.33 Insulation
440S 4H SATIN 442 51 31 0.35 Insulation
T492P PLAIN 492 10 8 0.50 Insulation
T529P PLAIN 529 10 8 0.50 Insulation
557S 8H SATIN 557 54 48 0.38 Insulation
573T2 2:2 TWILL 573 26 25 0.46 Insulation
595S 4H SATIN 595 36 25 0.44 Insulation
T2025P PLAIN 600 20.3 14.4 0.65 Welding
640S 8H SATIN 640 40 38 0.49 Insulation
7587M MOCK LENO 655 39 21 0.76 Filtration
T816 PLAIN 816 13.2 11.9 0.85 Insulation
840S 8H SATIN 840 43 35 0.85 Insulation
C850S 8H SATIN 850 46 32 0.85 Insulation
880S 8H SATIN 875 46 35 0.88 Insulaiton
900P PLAIN 900 30 12.0 1.00 Insulation
C920P PLAIN 920 31 12 1.10 Insulation
2626BT BROKEN TWILL 950 25.6 17.2 1.10 Insulation
